Neumann TLM 103: The Go-To Microphone for Any Recordings

Table of Contents

We are excited to announce that we have recently added the Neumann TLM 103 to our inventory. This high-quality microphone is widely respected in the industry for its exceptional clarity and accuracy, and we are confident it will be a valuable addition to our recording equipment. Whether you are a singer-songwriter looking to capture intimate vocals or a full band looking to get a rich, detailed sound, the TLM 103 is a great choice. We look forward to helping our clients achieve their recording goals with this exceptional piece of equipment.

Neumann TLM 103: A Top-Performing Mic for Any Recording

neumann-tlm-103-large-diaphram-vocal-microphone

The Neumann TLM 103 is a large diaphragm condenser microphone that has become a staple in professional recording studios around the world. It was first introduced by Neumann, a German microphone manufacturer with a long history dating back to the 1920s, in the early 2000s. It has earned a reputation as a top-performing microphone in its class due to its exceptional clarity and accuracy. The microphone is designed to be a versatile and reliable tool for recording a wide range of sources, including vocals, instruments, and more. Since its introduction, it has become a go-to choice for many professional recording engineers.

Price of TLM 103

The price may vary depending on the retailer and location, but it is generally considered to be a mid-range to high-end microphone in terms of cost. If you want reliable and high-performing equipment for professional-quality recordings, the TLM 103 is worth considering. You can find the TLM 103 on Amazon , Bajaoo, Sudeep Audio, and Sweetwater. However, we paid ₹91,500 for it when we bought it. This price may vary depending on the retailer, location, and any promotions or discounts that may be available. Overall, the TLM 103’s price will depend on your specific needs and budget, so it’s important to do your research and consider all of your options before making a decision.

Applications

The Neumann TLM 103 features a cardioid polar pattern, which helps to reduce unwanted background noise and feedback. This makes it ideal for recording in a studio setting, where you need to focus on capturing a clear and accurate representation of the sound source. The microphone’s large diaphragm also allows it to capture a wide range of frequencies, from the deep bass of a kick drum to the high-end clarity of a lead vocal.



Neumann TLM 103 Frequency response

The Neumann TLM 103 has a frequency response of 20 Hz to 20 kHz, which means it can accurately reproduce sound waves within that range of frequencies. It has a relatively flat response curve, meaning it doesn’t boost or cut any particular frequency range, allowing for a true and transparent representation of the sound being recorded.

The TLM 103 is designed with a large diaphragm, which allows it to capture a wide range of frequencies and deliver a rich, full-bodied sound. It also has a cardioid pickup pattern, which means it is most sensitive to sound waves coming from directly in front of the microphone, making it ideal for isolating a specific sound source.

The TLM 103 is a popular choice for recording vocals, as it is able to accurately capture the nuances and subtleties of the human voice. It is also well-suited for recording instruments, particularly those with a high-frequency content, such as acoustic guitar or piano.

Frequency-diagram-of-Neumann-TLM-103

One of the standout features of the Neumann TLM 103 is its extremely low self-noise level. This means that the microphone has a very low level of inherent noise, allowing it to capture even the subtlest nuances of your performance. The TLM 103 also boasts a high maximum sound pressure level, allowing it to handle loud sources without distorting the signal.



Neumann TLM 103 Cardioid pattern

The Neumann TLM 103 is equipped with a large diaphragm capsule and a cardioid pickup pattern. The cardioid pattern optimizes attenuation of rear sound and renders off-axis sounds naturally, while increasing isolation. This also leads to high feedback suppression in live situations or when the microphone is used near loudspeakers.

neumann-tlm-103-cardioid-pattern



Acoustic features

The Neumann TLM 103 is a front-addressed microphone marked with the red Neumann logo on its body. It features a large diaphragm capsule called the K 103, which is based on the K 87 capsule that is well-known from the U 67 and U 87 microphones. The K 103 capsule has a flat frequency response up to about 5 kHz, and above that, it has a wide flat 4 dB presence boost. The TLM 103’s large wire mesh head grill protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without the use of corrective resonance effects, resulting in excellent impulse response and the ability to accurately reproduce fine details of music and speech without adding any coloration.



Build Quality

In terms of build quality, the Neumann TLM 103 is designed to withstand the rigors of the recording studio. It features a durable metal housing and a robust shock mount system to protect the internal components and reduce handling noise. The microphone also comes with a metal pop filter to help eliminate unwanted plosives, ensuring a clean and professional recording.



Advantages

One of the key advantages of the Neumann TLM 103 is its versatility. It is an excellent choice for recording a wide range of sources, including vocals, instruments, and percussion.



Neumann TLM 103 Technical specifications

In terms of technical specifications, the Neumann TLM 103 has a frequency response of 20Hz to 20kHz, a sensitivity of 20mV/Pa, and an output impedance of 50 ohms. It requires 48V phantom power to operate, and it has a maximum SPL of 144dB. The microphone comes with a swivel mount and a carrying case for easy transportation and storage.

Its cardioid polar pattern, low self-noise level, and high maximum SPL make it a reliable choice for capturing professional-grade audio. If you’re looking for a microphone that delivers exceptional sound quality and versatility, the Neumann TLM 103 might be the perfect choice for you.



Here are some of its Specifications:
Type of condenser
Capsule K 103
Diagram fixed cardioid
Frequency range 20 Hz – 20 kHz
Sensitivity -32.5 dBV (23 mV/Pa)
Rated resistance 50 ohm
Rated load resistance 1 kOhm
Equivalent noise level, CCIR 17.5 dB
Equivalent noise level, A-weighted 7.5dBA
Maximum sound pressure level 138 dB
Signal/noise 87dBA, 76.5dB (CCIR)
Maximum output voltage 13 dBu
Dynamic Range 48V, ±4V
Current consumption (P48, IEC 61938) 3 mA
Connector for connection XLR 3 F
Dimensions 60 x 132 mm
Weight 450g



Neumann TLM 103 is Best Suited for:

The Neumann TLM 103 is a highly versatile microphone that can be used in a variety of settings, including concert halls, live shows, home studios, professional recording studios, and more. It is also well-suited for a range of applications, such as broadcasting, film, foley, voiceover, and podcasting. Its smooth, warm sound and flat frequency response make it an excellent choice for capturing vocals, instruments, and other sounds with natural detail and clarity.



Concert hall:

The Neumann TLM 103 is a great choice for recording concerts and live shows due to its exceptional clarity and accuracy.

Live show:

The TLM 103 is a reliable choice for capturing the energy and excitement of live performances with clarity and detail.

Home studio:

It is also well-suited for use in home studios, providing a professional-quality sound without taking up too much space.

Professional recording studio:

The TLM 103 is a reliable choice for professional recording studios, capturing vocals, instruments, and other sounds with natural detail and clarity.

Broadcasting:

Its smooth, warm sound and flat frequency response make it a popular choice for broadcasting and film, allowing for clear and accurate audio capture.

Film Production:

The TLM 103 is an excellent choice for film and video production, providing clear and accurate audio capture.

Foley Recording:

It is also well-suited for foley and voiceover work, providing a clear and natural sound for these applications.

Voiceover Recording:

The TLM 103 is a reliable choice for voiceover work, providing a clear and natural sound for any project.

Podcast Recording:

Its versatility and reliability make it a great choice for podcasting, allowing for clear and accurate audio capture in any setting.



Neumann TLM 103 Model types

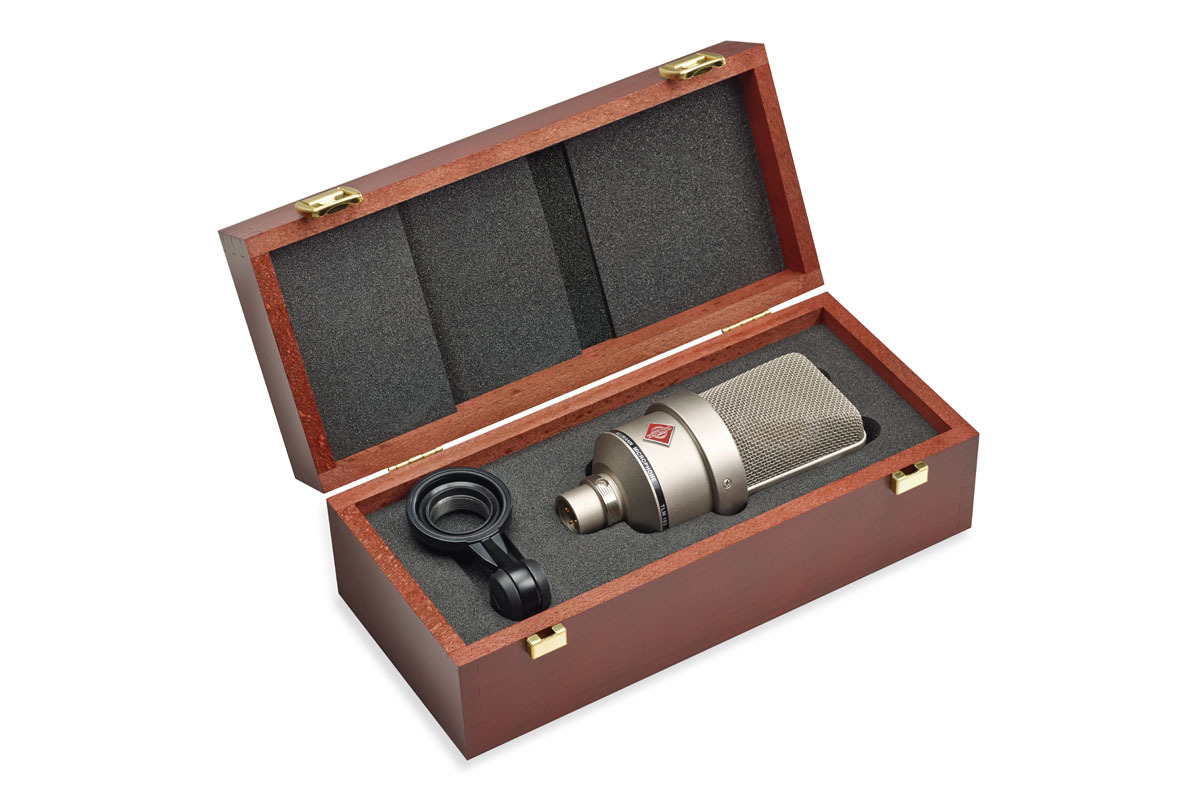

TLM 103

TLM 103 Microphone
SG 2 Swivel Mount
Wooden Box

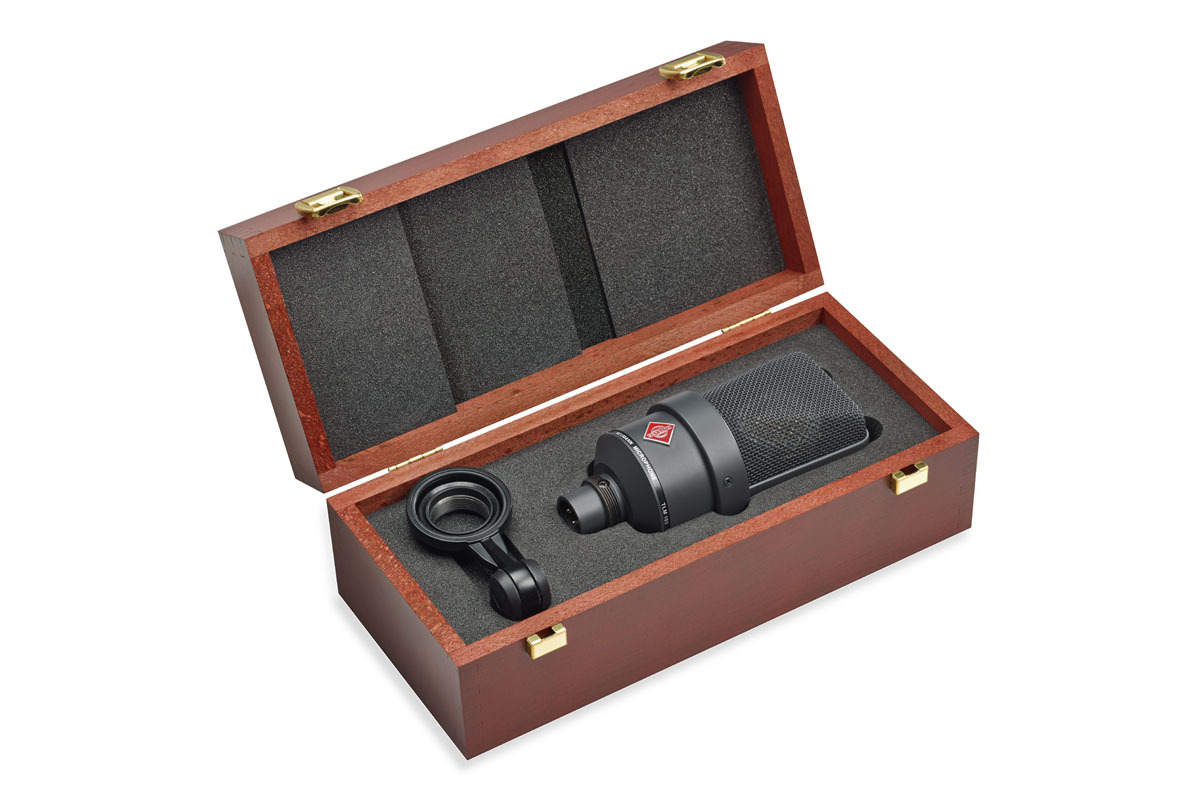

TLM 103 MT

TLM 103 MT Microphone
SG 2 Swivel Mount
Wooden Box

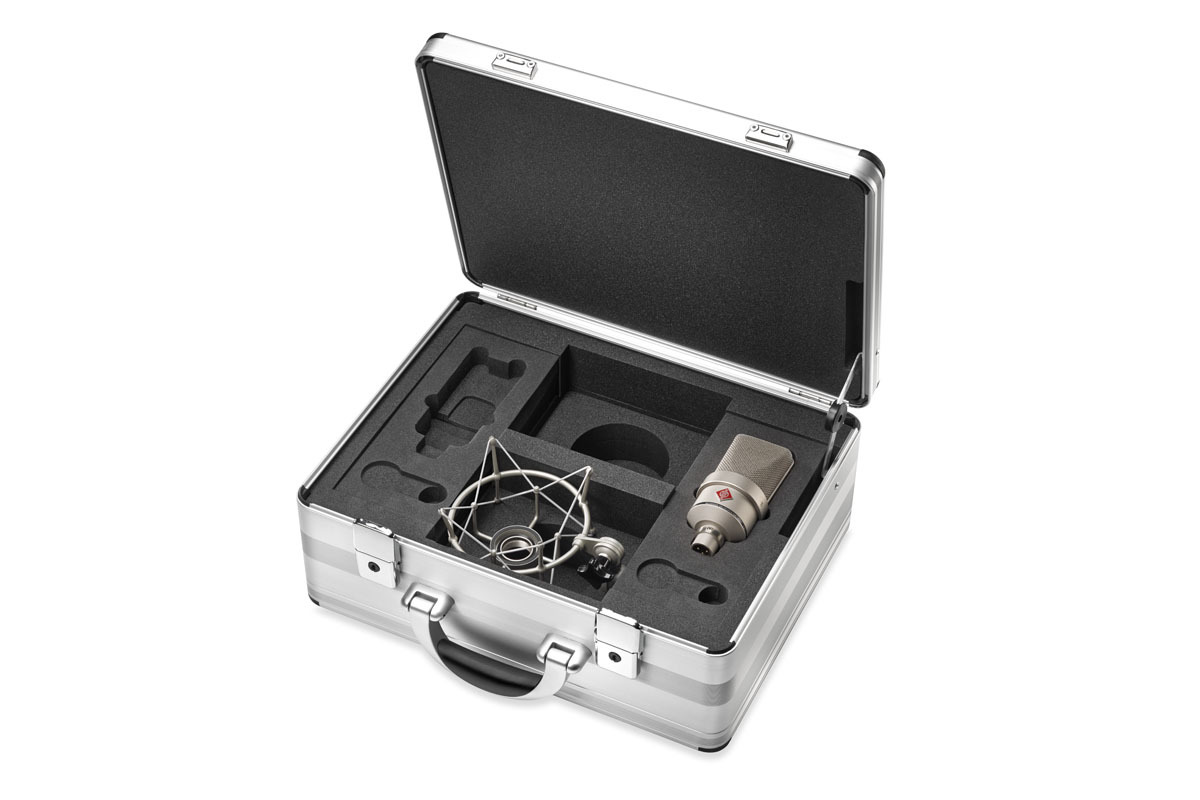

TLM 103 MONO SET

TLM 103 Microphone
EA 1 Shock Mount
Aluminium Case

TLM 103 MT MONO SET

TLM 103 MT Microphone
EA 1 Shock Mount
Aluminium Case

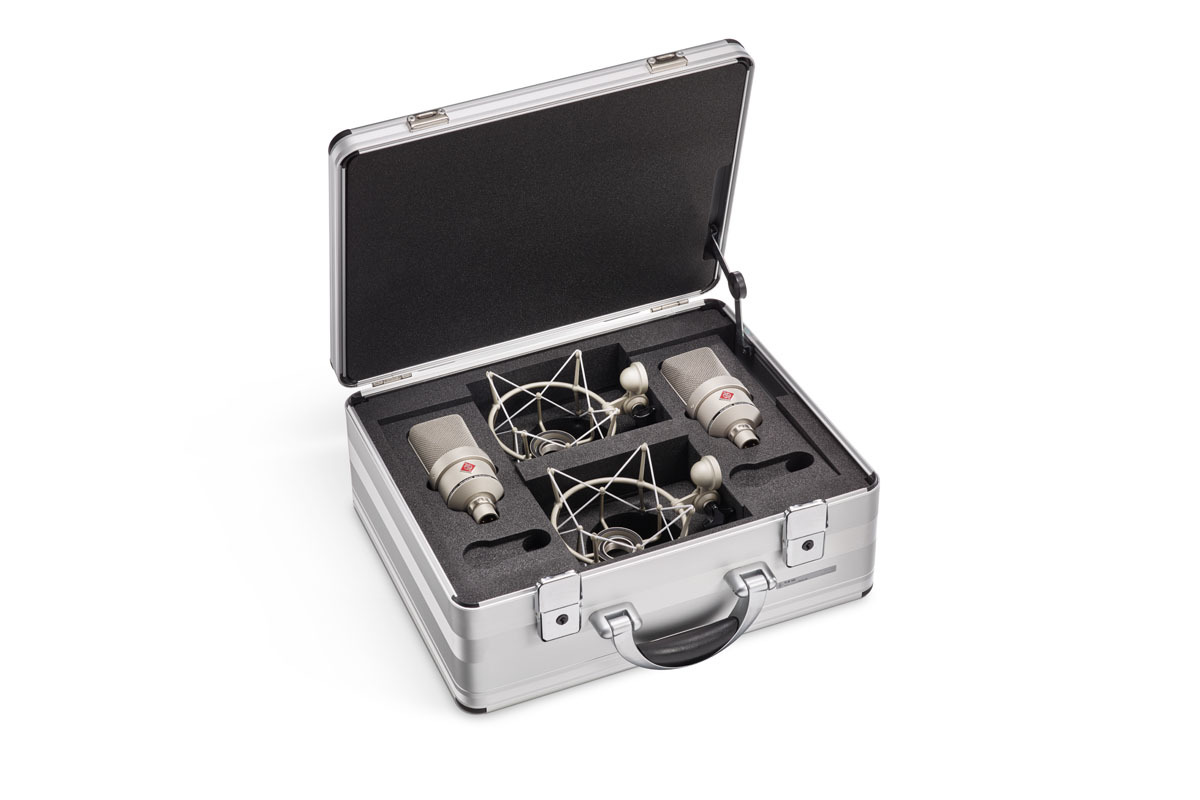

TLM 103 STEREO SET

2 x TLM 103 Microphone
2 x EA 1 Shock Mount
Aluminium Case

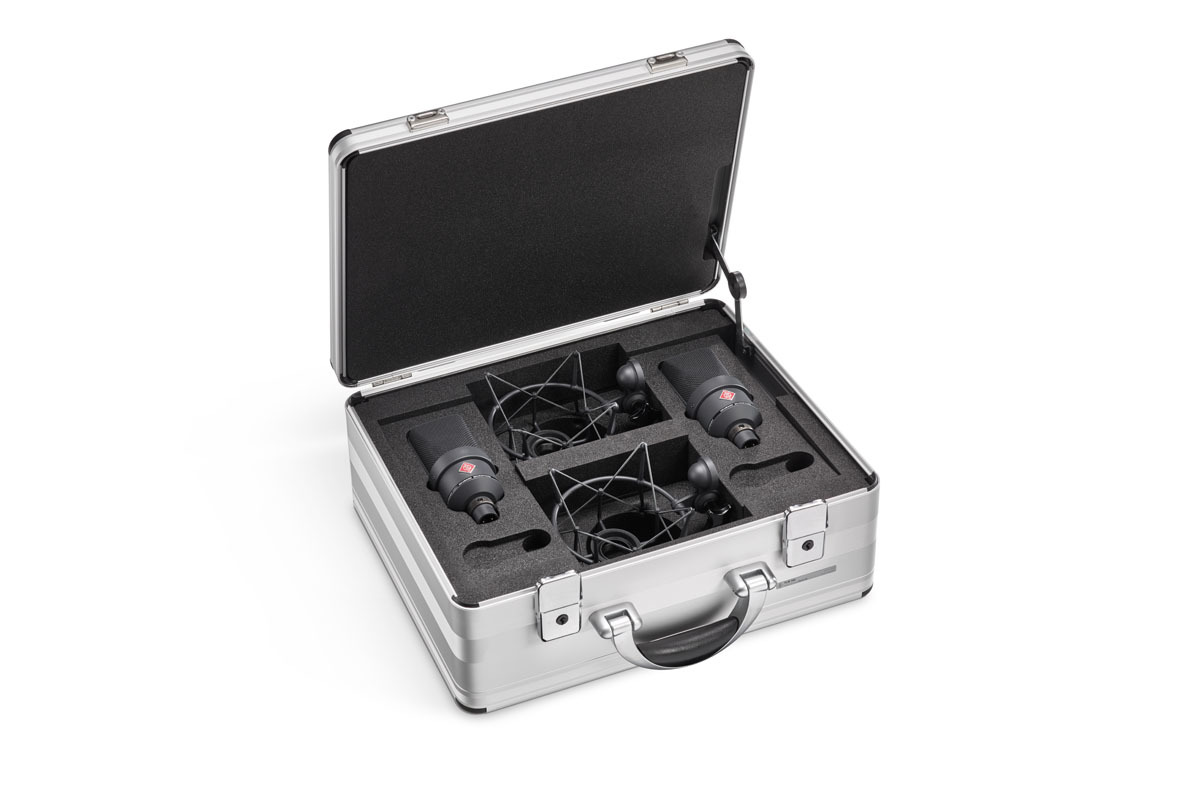

TLM 103 MT STEREO SET

2 x TLM 103 MT Microphone
2 x EA 1 Shock Mount
Aluminium Case

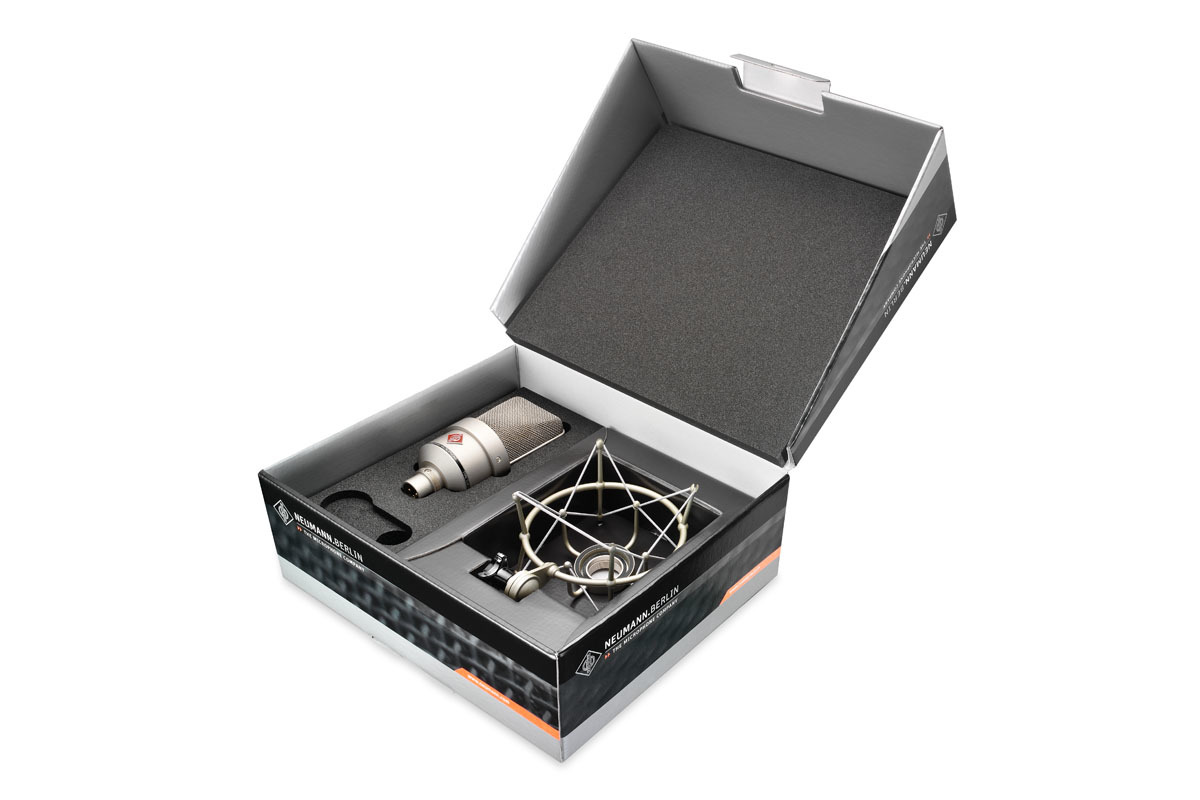

TLM 103 STUDIO SET

TLM 103 Microphone
EA 1 Shock Mount

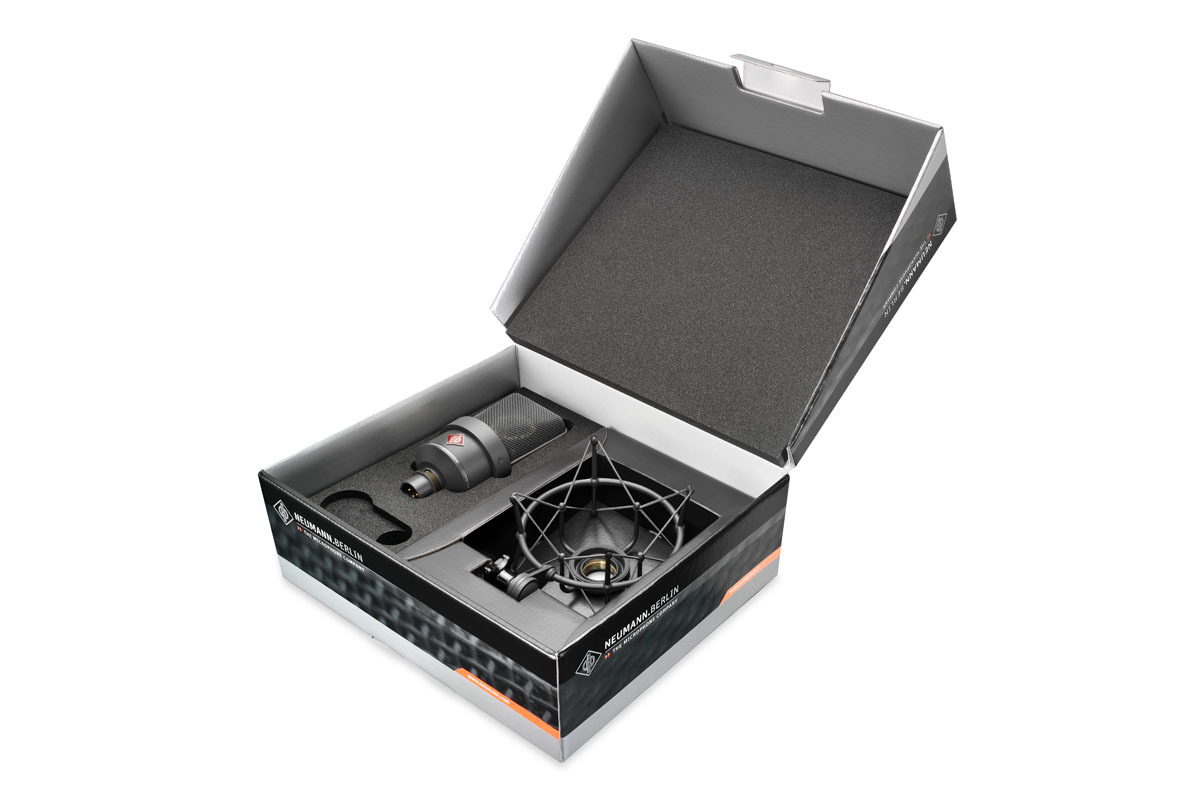

TLM 103 MT STUDIO SET

TLM 103 MT Microphone
EA 1 MT Shock Mount

TLM 103 STUDIO SET

TLM 103 Microphone
EA 1 Shock Mount

TLM 103 MT STUDIO SET

TLM 103 MT Microphone
EA 1 MT Shock Mount



Conclusion

The Neumann TLM 103 is a top-performing microphone that is widely respected in the industry for its exceptional clarity and accuracy. It is a versatile and reliable choice for a wide range of recording applications, including vocals, instruments, and more. Its smooth, warm sound and flat frequency response make it an excellent choice for capturing natural detail and clarity. If you are looking for a high-quality microphone for your recording projects, the TLM 103 is definitely worth considering. And if you want to try it out for yourself, you can book a recording session at Taperfox Studio and experience the quality of this exceptional mic firsthand.

At Taperfox Studio, we are dedicated to offering our clients the best recording equipment available. The addition of the Neumann TLM 103 to our inventory is a testament to that commitment, and we are confident that it will be a valuable addition to any recording setup. If you want to learn more about the TLM 103 or our other equipment. We would be happy to answer any questions you may have. So why wait? Contact us now to book your session!
